Parameters of Self-diffluent Classifier LHB:
Spec Data LHB-E LHB-F LHB-G LHB-K LHB-N LHB-M LHB-Q LHB-S LHB-D LHB-T
Handling capacity (t/h) 0.05~0.25 0.3~1.0 0.6~2.0 1.5~3.0 3~ 6.0 6.0~12 13~26 30~50 50~80 80~120
Fineness (um) 2-150 2-150 2-150 2-150 2-150 2-150 2-150 2-150 2-150 2-150
Efficiency (η=%) 70~90 70~90 70~90 70~90 70~90 70~90 70~90 70~90 70~90 70~90
Main power (kw) 1.5-2.2 3-4 5.5-7.5 7.5-11 15-22 22-37 30-55 75-90 90-110 132-160
Process Flow of Self-diffluent Classifier LHB:
Flow Chart I
Self-diffluent Classifier
  • 1. Feeding system
  • 2. Main machine of self-diffluent classifier
  • 3. Cyclonic collector
  • 4. Pulsed dust collector
  • 5. Induced draft fan

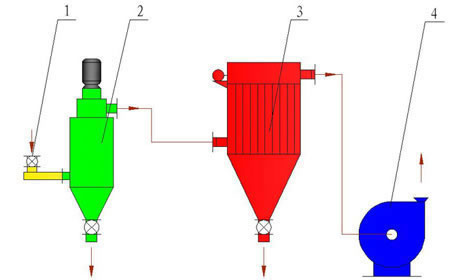

Flow Chart II

Self-diffluent Classifier
  • 1. Feeding system
  • 2. Classifier
  • 3. Pulsed dust collector
  • 4. Induced draft fan

Flow Chart III

Self-diffluent Classifier
  • 1. Feeding system
  • 2. Main machine of self-diffluent classifier
  • 3. Induced draft fan
  • 4. Pulsed dust collector
